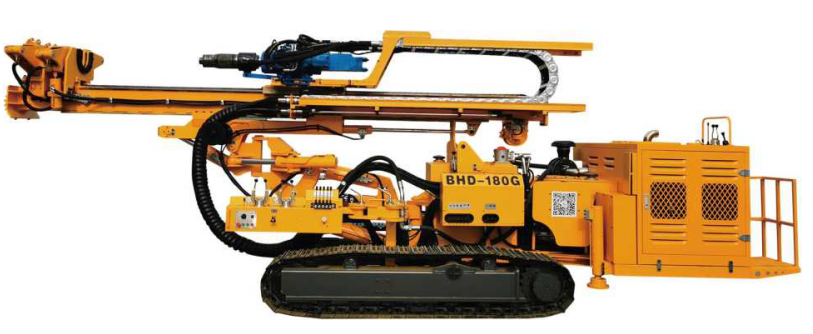

Slope Stabilization And Modern Foundation Execution Hydraulic Rotary Drilling Rig BHD - 180G
BHD-180G hydraulic anchor drilling rig with its articulation system finds its usage at multi-position and multi-angle drilling works with easy operation. The rotation speed of its rotary head is much higher so that keeps its penetration speed much faster.
Quick Detail:
* Compact design
* Easy to operate
* Multi-function application
* Long service life
Packaging and Shipping:
Payment:L/C D/A D/P T/T
Delivery Term:FOB,CFR,CIF,EX-Work,etc.
Package: As standard of manufacture
Our advantages:
1). As a manufacture,we have 10 years producing experience
2). Got ISO9001
3). With competitive price,short lead-time.
4) . We have professional and technical QC team to ensure 100% products checking.
5). Efficient sales team and excellent customer service
6). Compact design,multi-function application
7). Stable with long service life
Specifications:
| Engine Model No. | QSB5.9-C180 |
| Emission level | III |
| Rated power (kW) | 132kW @2200rpm |
| Caterpillar Band Model No. | LG-135 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 2.1/3.0 |
| Ground pressure (N/cm2) | 5.3 |
| Gradeability (°) | 25 |
| Rotation rate at high gear (r/min) | 0~80,0-160 |
| Rotation rate at low gear (r/min) | 0~55,0-110 |
| Torque range at high gear (Nm) | 5800/11600 |
| Torque range at low gear (Nm) | 6800/13600 |
| Impact work (N・m) | 750 |
| Percussion frequency (min1) | 1350 |
| Feed stroke (mm) | 3500 |
| Feed force (kN) | 38 |
| Retraction force (kN) | 76 |
| Feed rate (m/min) | 0~16 0~63 |
| Retraction rate (m/min) | 0-8.5 0~32 |
| Feeding Pattern | Hydro-cylinder + Chain |
| Clamp range (mm) | 60-219 |
| Maximum passing diameter (mm) | 260 |
| Dimension (mm) | 6700x2280x2600 |
| Weight (T) | 11 |
Our team:
In conformity of the philosophy of unceasing innovation from our professional R&D team, whole heartly serving global customers with high qualified products, we have established strict & standard managerial pattern.
Professional R&D team——Our engineers providing unique design for our products to qualify our customers’ requirement.
Quality supervision teams——All products are strictly tested before sending, to ensure that all products work well.
Efficient logistics team——Customized packaging and timely tracking keeping safe until you receive the products.
After sales service team—— Professional service provided to our clients in time 24 hours a day,seven days a week.
Professional sale team——The most professional knowledge will be shared with our customers, to help them to do better business.
